Advancing Sustainable Agriculture in Arid Regions: A Comprehensive Analysis of our '365 Desert Farming' Initiative.

Abstract

This project, "365 Desert Vegetation," presents an ecosystem-based approach to address the challenges of sustainable agriculture in arid regions, with a particular focus on areas like Qatar, characterized by limited resources and harsh environmental conditions. The study introduces innovative solutions aimed at transforming arid lands into productive agricultural ecosystems, thereby enhancing food security and environmental sustainability. Key innovations include a multi-layered wall for heat mitigation, a porous pipe composting system for nutrient supply, integrated full-spectrum grow lights to boost photosynthesis, a method for transforming sandy soil into fertile growing medium, and a subsurface drip irrigation system for efficient water management. The project also incorporates renewable energy sources, specifically solar and wind energy, to power agricultural operations. Experimental results demonstrate the effectiveness of these individual components in promoting plant growth and managing environmental conditions, ultimately envisioning a future where year-round sustainable agriculture is feasible in challenging desert environments.

1.0 Introduction

Agricultural practices in desert regions have historically faced significant hurdles due to arid climates and extreme temperatures, which impede plant growth and productivity. The "365 Desert Farming" project was initiated to overcome these challenges, enabling continuous agricultural activity in hot and harsh environments such as Qatar. The core of this initiative lies in an integrated system that tackles critical environmental constraints and resource limitations to foster self-reliance in food production.

The project proposes several key innovations:

• Multi-layered Wall: Designed to reduce external heat transmission, allowing for a stable internal environment conducive to plant growth year-round.

• Modified Pipe Compost System: A low-cost, semi-automatic manuring system that converts bio waste into natural manure, ensuring continuous nutrient supply, improving soil quality, and supporting biowaste management.

• Full-spectrum Blue-Red Grow Lights: Integrated to enhance photosynthesis rates, leading to healthier plant development, especially beneficial in regions with excessive sunlight and high transpiration.

• Subsurface Drip Irrigation: A water-efficient method that supplies water directly to the root zone, promoting sustainable water management and enabling the utilization of treated sewage water.

• Sand to Soil Transformation: A method to convert infertile sandy lands into arable soil, expanding possibilities for crop cultivation in arid areas.

• Renewable Energy Systems: Utilization of solar panels and Archimedes windmills to provide sustainable energy for agricultural operations and potentially surrounding communities.

This comprehensive approach aims to create a hospitable environment for plant growth, enhance agricultural yield, and reduce dependence on imported goods, ultimately improving the quality of life for citizens in arid regions.

2.0 Methodology

The research involved several experiments focusing on heat management and plant growth under various conditions.

2.1 Heat Exposure Experiments (Multi-Layered Wall)

The outermost layer, a 12 cm thick composite, consists of clay, cement, and sand, proportioned at 2:1:1 for the external 2.5 cm and 5:1 (clay:cement) for the inner 9.5 cm. This clay-based composition is critical for its high thermal insulation and heat retention properties, acting as a natural buffer against intense external heat. Following this, three thick heat moderating membranes, each 5 cm thick with a 30% open and 70% closed mesh, are strategically positioned with 3 cm gaps. These membranes function to block direct heat flow and decelerate convection, thereby reducing the thermal load on subsequent layers. The conditioning layer, a 10 cm hollow space, integrates an air pipe (supplied by wind turbines) and a copper or aluminum water pipe. The introduction of cold air at the bottom of this layer facilitates the upward movement of hot air, which is then expelled through an exhaust, maintaining a relatively constant indoor temperature. Structurally, a 4 cm thick concrete layer, composed of stone fragments, sand, and cement in a 4:2:1 ratio, provides essential strength to the overall structure. The innermost layer, 4 cm thick, is made from compressed recycled plastic. Its fibrous composition and absence of air pockets contribute to excellent insulation, minimizing heat transmission into the interior agricultural space.

Experiment 3: 3 Hour Heat Exposure

• Objective: To monitor heat conduction with continuous exposure to medium intensity heat.

• Method: A 70-Watt halogen bulb was used to artificially generate heat through a concealed cardboard tunnel, focusing on the external surface of a layered structure. The baseline temperature was 27.5°C on both sides of the layer.

• Observations:

  • After 1 hour: Temperature closer to the surface rose to 40.2°C, exposed surface to 49.5°C, inner surface to 27.5°C.

  • After 2 hours: Temperature closer to the surface was 40.1°C, exposed side to 51.3°C, inner side to 28°C.

  • After 3 hours: Exposed side temperature rose to 61.2°C, inner side to 29°C.

Experiment 4: 10 Hour Heat Exposure

• Objective: Similar to Experiment 3, but over a longer duration.

• Method: A 70-Watt Halogen Bulb was used with a concealed tunnel, focusing on the external surface of a layered wall without heat moderators or air vents. Baseline temperature was 27.9°C on both sides.

• Observations:

  • After 4 hours: Temperature in the mid-space rose to 28.2°C.

  • After 10 hours: Temperature in the mid-space rose to 29.2°C.

  • After switching off light: Exposed clay layer surface reached 58.4°C, inner clay surface reached 31.5°C, concrete surface 28.4°C, and innermost layer returned to base temperature of 27.9°C.

Experiment 5: 1 Hour High Intensity Heat Exposure

• Objective: To observe heat transmission with and without heat moderators and air vents.

• Method: A 120-Watt floodlight was used.

  • Without moderators: Starting temperature 27.9°C. Internal temperature rose to 33.7°C after 1 hour.

  • With moderators and 1cm vent: Starting temperature 27.1°C. Internal temperature rose to 29.7°C after 1 hour.

  • Temperature after cement layer: 29.1°C. After first heat moderator: 28.2°C. After second heat moderator: 27.4°C.

2.2 Plant Growth Experiments

Experiment 6: Green Gram Comparative Study (10 Days Observation)

• Objective: To compare the growth of green gram under different conditions: grow lights with drip irrigation and smoke exposure (P1), grow lights with drip irrigation (P2), sunlight with normal irrigation (P3), and sunlight with drip irrigation (P4).

• Method: Green gram plants were grown in coco peat under controlled light and irrigation conditions, with one group exposed to smoke.

• Observations: Plant height, leaf length, leaf width, root development, and stem strength were monitored after 7 and 10 days.

Experiment 7: Effect of Smoke Exposure on Tomato Plants

• Objective: To observe the effect of smoke exposure on tomato plants.

• Method: Tomato plants were cultivated in cocopeat, with one group exposed to smoke and another serving as a control (without smoke exposure). Observations were made on leaf growth, height increase, and root branching.

3.0 Results

3.1 Heat Management through Multi-Layered Wall

The heat exposure experiments demonstrated the effectiveness of the multi-layered wall in mitigating heat transmission.

• Experiment 3 (3-hour exposure): The inner surface temperature remained relatively stable at 27.5°C initially, rising to 29°C after 3 hours, despite the exposed surface reaching 61.2°C. This indicates effective heat dampening.

• Experiment 4 (10-hour exposure): The mid-space temperature increased marginally from 27.9°C to 29.2°C over 10 hours, while the exposed clay layer reached 58.4°C, further illustrating the wall's insulating properties.

• Experiment 5 (High-intensity, 1-hour exposure): The internal temperature without heat moderators rose to 33.7°C, whereas with heat moderators and an air vent, it only rose to 29.7°C. The sequential temperature drop across the cement layer and heat moderators (29.1°C to 27.4°C) highlights their effectiveness in reducing heat conduction.

3.2 Plant Growth Observations

Green Gram (Experiment 6):

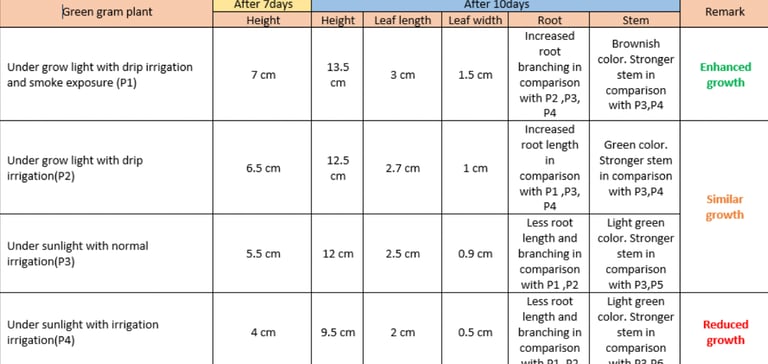

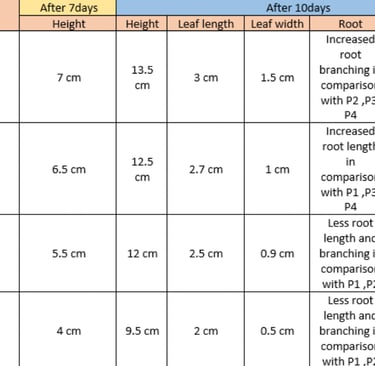

A 10-day comparative study was conducted on Green Gram plants under four distinct conditions to evaluate their growth parameters :

• P1: Under grow light with drip irrigation and smoke exposure. This condition consistently demonstrated enhanced growth. After 10 days, plants reached a height of 13.5 cm, with leaf lengths of 3 cm and leaf widths of 1.5 cm. Notably, P1 exhibited increased root branching and developed a stronger, brownish stem.

• P2: Under grow light with drip irrigation. Plants under this condition showed growth similar to P1, reaching 12.5 cm in height, 2.7 cm in leaf length, and 1 cm in leaf width after 10 days. They displayed increased root length and a stronger, green stem.

• P3: Under sunlight with normal irrigation. This group exhibited moderate growth, achieving 12 cm in height, 2.5 cm in leaf length, and 0.9 cm in leaf width. Root length and branching were comparatively less than those observed in P1 and P2.

• P4: Under sunlight with drip irrigation. This condition resulted in reduced growth, with plants reaching only 9.5 cm in height, 2 cm in leaf length, and 0.5 cm in leaf width. Root length and branching were also less pronounced compared to P1 and P2.

The key finding from this study is that P1 consistently demonstrated the best overall growth, indicating the synergistic benefits derived from the combination of grow lights, drip irrigation, and smoke exposure. P2, which utilized grow lights and drip irrigation, significantly outperformed both P3 and P4 (which relied on sunlight), underscoring the superiority of controlled indoor conditions and efficient water delivery for plant vitality.

Tomato Plants (Experiment 7):

Further corroborating the positive effects of smoke on plant development, a separate study on Tomato plants observed several benefits from smoke exposure :

• Improved leaf growth was noted in plants exposed to smoke.

• A measurable increase of 0.5 cm in height was observed for plants subjected to smoke exposure.

• Increased root branching was evident in plants exposed to smoke.

Modified Pipe Compost System

The Modified Pipe Compost system involves the incorporation of pores within the compost pipes, which facilitates a consistent and enhanced connection between the decomposing organic matter and the surrounding soil.

A three-month study revealed significantly faster nutrient absorption rates when porous pipes were utilized.

• Plants began absorbing nutrients by the sixth week, a notable improvement compared to the seven weeks required for conventional compost pipes. Furthermore, nearly full nutrient assimilation was achieved by the eighth week, in contrast to over ten weeks with traditional methods.

• In subsequent composting cycles, with established microbial communities already present, nutrient absorption commenced even more rapidly, within four weeks, with nearly complete assimilation by the sixth week.

• This ability to significantly accelerate nutrient absorption is a critical breakthrough. It is not merely about the presence of nutrients but about optimizing the rate at which plants can access them. Faster nutrient cycling means plants can grow and mature more quickly, enabling multiple crop cycles within a single year.

• This directly translates to higher overall agricultural output and improved economic viability for farmers, demonstrating that efficient nutrient delivery is as crucial as nutrient availability.

Integrated Pest and Disease Management (AgroFumes)

• AgroFumes involves controlled fumigation using a carefully selected combination of natural materials. These include Frankincense, Sweet Flag, Sal tree, Neem, Calotropis, Cedar, Vetiver, Nutmeg, Turmeric, Dried plant leaves, Lemongrass essential oil, and Citronella essential oil.

• An experiment conducted on an Indian hog plum plant severely infected with Mealybugs demonstrated the efficacy of this technique. After 10 days of daily 15-minute fume exposure, new leaves were observed to have grown, indicating successful pest management and plant recovery.

• Scientific references indicate that the antimicrobial properties of smoke can effectively reduce bacterial and fungal infections on crops, potentially minimizing the need for synthetic chemical fungicides.

The most significant aspect of AgroFumes is its dual functionality: it acts simultaneously as a pest and disease control agent and as a plant growth stimulant.

4.0 Findings

• Superior Thermal Regulation: An innovative multi-layered wall system effectively mitigates extreme external temperatures, maintaining a stable internal climate. This enables year-round cultivation without energy-intensive air conditioning, supporting continuous agricultural operations.

• Optimized Plant Vigor: Synergistic use of full-spectrum grow lights, efficient drip irrigation, and controlled smoke exposure significantly enhances plant growth, root development, and overall vigor in crops like Green Gram and Tomato. This leads to higher yields and crop diversification, overcoming seasonal limitations.

• Sustainable Soil Enhancement: The Modified Pipe Compost system accelerates nutrient absorption, providing continuous organic manure and improving soil fertility. Additionally, our Sand-to-Soil conversion method transforms infertile sandy lands into productive agricultural mediums, boosting water and nutrient retention. These methods enhance long-term soil health and waste management.

• Eco-Friendly Pest Management: AgroFumes effectively control pests, as demonstrated on Mealybug-infected plants. Smoke exposure also positively influences plant growth, offering a dual-function, eco-friendly alternative to chemical pesticides.

5.0 Impact

The experimental findings validate the effectiveness of the multi-layered wall in mitigating heat, and the significant role of controlled conditions (grow lights, drip irrigation, smoke exposure) in enhancing plant growth and development.

The integrated system, encompassing advanced heat management, efficient irrigation, optimized lighting, biowaste conversion, and soil transformation, offers a comprehensive solution to the challenges of desert farming. By harnessing renewable energy, the project further aligns with principles of environmental sustainability. This initiative holds immense potential to increase food production, reduce reliance on imports, and enhance the quality of life in regions facing natural environmental constraints and resource limitations. The concept of the multi-layered wall, in particular, has broader applications beyond agriculture, offering a means to minimize air-conditioning use and contribute to global warming mitigation and energy conservation efforts. Ultimately, this project aims to create a sustainable and self-reliant future for agriculture in Qatar and similar desert environments worldwide.

References

1. Karrikin as plant growth regulators: Mimicking the effects of strigolactone. Available at:
   https://en.wikipedia.org/wiki/Karrikin#:~:text=Karrikins%20help%20stimulate%20seed%20germination,an%20increase%20in%20plant%20branching

2. The antimicrobial properties of smoke and their impact on crop productivity. Available at:
   https://www.sciencedirect.com/science/article/pii/S1026918523000744

3. Antibacterial properties of neem leaves smoke. Available at:
   https://www.researchgate.net/publication/45947636_Study_on_the_Effect_of_Neem_Azadirachta_indica_Leaves_Smoke_in_Controlling_...

4. Improving thermal insulation using plastic waste. Available at:
   https://www.sciencedirect.com/topics/engineering/thermal-insulation

Effects of smoke constituents on metabolic changes in plants. Available at:
https://pmc.ncbi.nlm.nih.gov/articles/PMC7588921/
